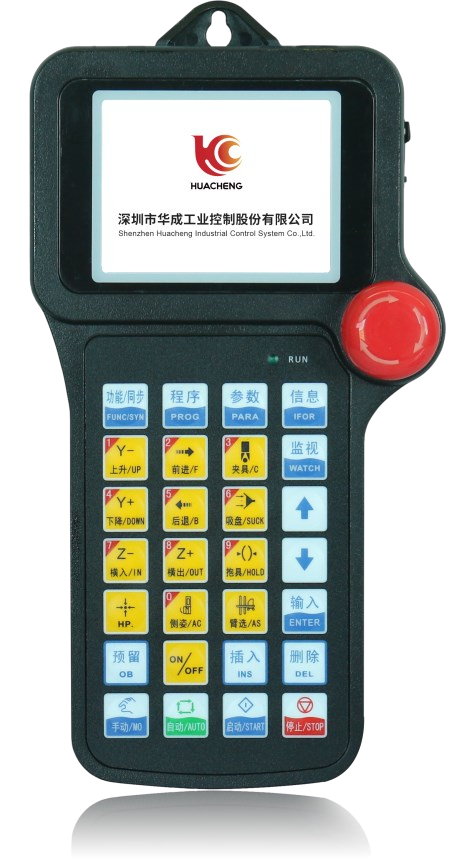

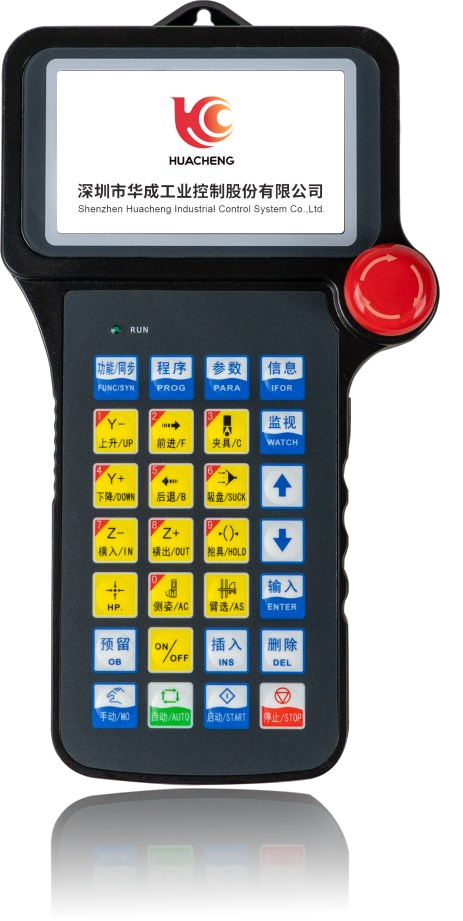

3.5 inches Teach Pendant
This product uses a 3.5-inch LCD screen with a resolution of 320*240, 28 film keys, 1 LED, and 24V power supply. It supports USB2.0 and RS-422 communication.
Parameter
| Item | Description |
|---|---|
| Processor | Microchip PIC24FJ256DA210 |
| Memory | 96K |
| Main Frequency | 32MHz |
| Capacity | 256K |
| LCD Screen | TFT 3.5 inch, 320*240 resolution |
| Touch Function | None |
| Operating System | None (Embedded C) |
| USB | USB2.0 |
| Communication | RS-422 |
| Power Supply | DC 24V |
| Power | 6W |
| Accessories | Single-row emergency stop (IDEC); Micro/membrane buttons: 28 pcs; Indicator light: 1 pc |
| Protection Grade | IP54 |
| Operating Temperature | -10°C ~ 45°C |
Customization Options List
| Item | Selectable | Description |
|---|---|---|
| Sticker | √ | The content and layout of the key stickers can be customized. |
| Mold color | √ | For plastic shell molds, the color of the plastic shell mold can be customized. |
| Wire | √ | Standard 5m high-flexibility wire; the length and material of the wire can be customized. |
Units Available For Separate Sale
| Item | Description |
|---|---|
| Complete machine | Used with Huacheng control system. When sold separately, the version number of the control system must be confirmed. |
| Accessories | Accessories of the complete machine are available for sale, excluding PCB components. |
| Plastic housing | When the plastic housing of this product is sold separately, the 3D drawings of the product can be provided. |
