8 inches Teach Pendant

This product features an 8-inch LCD screen with a resolution of 800*600. It comes standard with 23 membrane buttons, 5 LEDs, 1 AB-phase handwheel encoder, and a resistive touch screen. Powered by 24V, it supports USB2.0 and RS-422 communication. We can provide bare units with an operating system (Linux+QT4/Linux+QT5) and also offer pure display customization.

LEARN MORE

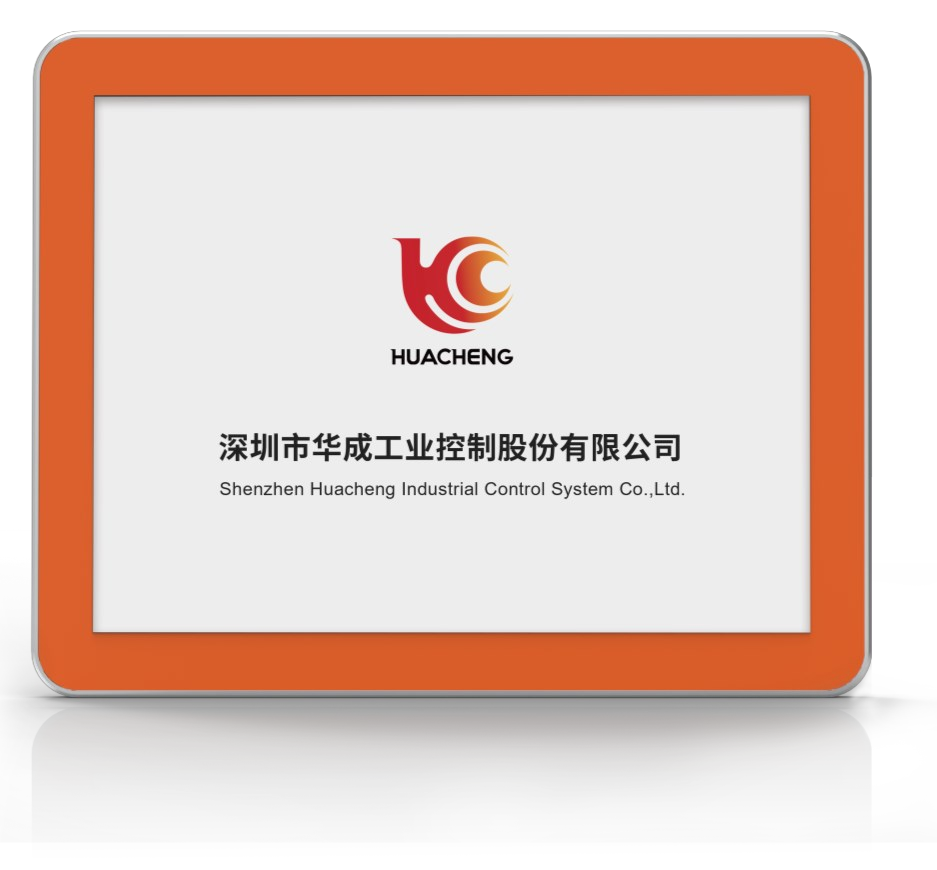

8.9 inches Detachable Teach Pendant

This product consists of two parts: a base and a tablet. The base comes standard with start, stop, and emergency stop buttons, a state switch, and a safety enable switch, all of which are level signals led out through the base wiring harness. The standard tablet is an 8.9-inch LCD screen with a resolution of 2560*1600 and is equipped with RK3588. We can provide bare tablets with an operating system (Linux+QT5). It communicates with the base via RS-422, supports network communication itself, features capacitive touch screen functionality, and has a battery capacity of 10000mAh.

LEARN MORE

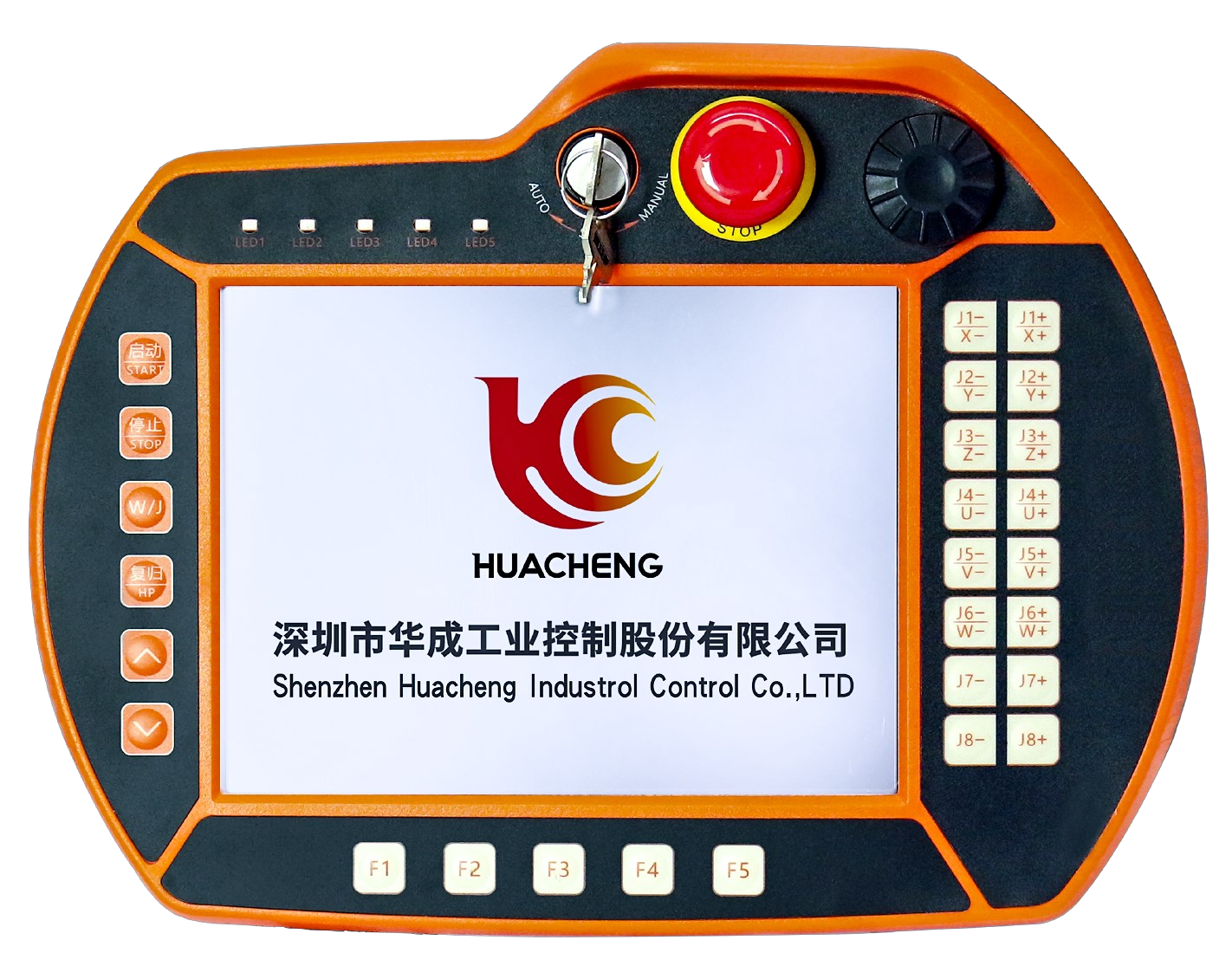

8 inches Teach Pendant Key Version

This product features an 8-inch LCD screen with a resolution of 800*600. It comes standard with 27 micro switches, 5 LEDs, 1 AB-phase handwheel encoder, a resistive touch screen, and a key-type 3-position state switch. Powered by 24V, it supports USB2.0 and RS-422 communication. We can provide bare units with an operating system (Linux+QT4/Linux+QT5) as well as a network communication version.

LEARN MORE

8 inches Waterproof Teach Pendant

This product is equipped with an 8-inch LCD screen with a resolution of 800*600. It comes standard with 28 micro switches, 5 LEDs, 1 AB-phase handwheel encoder, a resistive touch screen, and high-flexibility oil-resistant wires. Powered by 24V, it supports USB2.0 and RS-422 communication, and has an IP65 protection rating. We can provide bare units with an operating system (Linux+QT4/Linux+QT5) as well as a VGA pure display version.

LEARN MORE

7 inches Teach Pendant

This product uses a 7-inch LCD screen with a resolution of 1024*600. It is equipped with 23 micro-jack buttons, 5 LED lights, 1 AB handwheel encoder, and a touch screen. It is powered by 24V and supports USB 2.0 and RS-422 communication. It can provide bare system (Linux+QT4/Linux+QT5) and supports pure display customization.

LEARN MORE

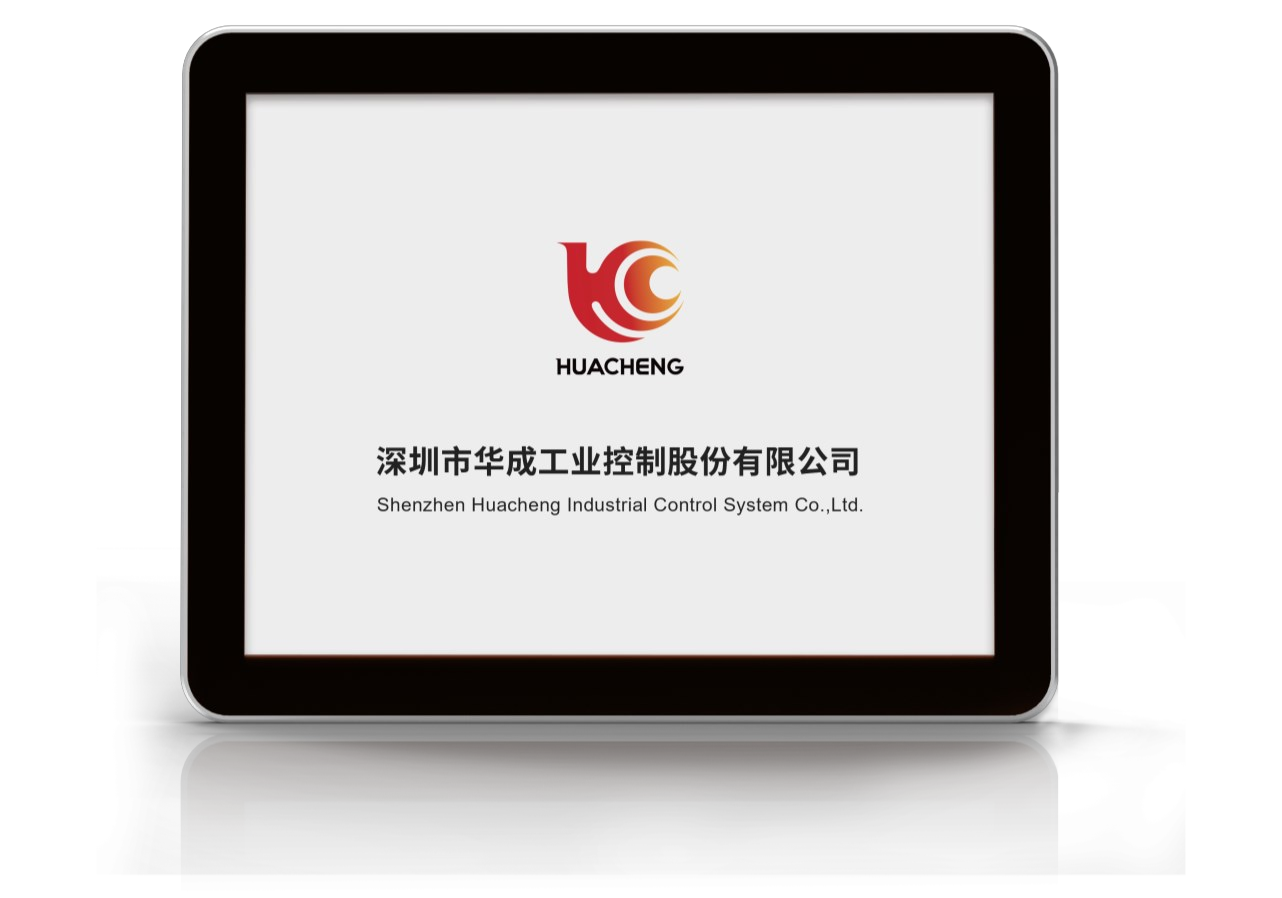

12.1 inches Teach Pendant

12.1-inch LCD screen with a resolution of 1027*768, powered by 24V. It comes standard with USB2.0, RS-485, network ports, and a capacitive screen, with a sheet metal housing. We can provide bare units with an operating system (Linux+QT5) and also support pure display customization.

LEARN MORE

15 inches Teach Pendant

15-inch LCD screen with a resolution of 1027*768, powered by 24V. It comes standard with USB2.0, RS-485, network ports, and a capacitive screen, with a sheet metal housing. We can provide bare units with an operating system (Linux+QT5) and also support pure display customization.

LEARN MORE

3.5 inches Teach Pendant

This product uses a 3.5-inch LCD screen with a resolution of 320*240, 28 film keys, 1 LED, and 24V power supply. It supports USB2.0 and RS-422 communication.

LEARN MORE

4.3 inches Teach Pendant

This product uses a 4.3-inch LCD screen with a resolution of 480*272, 28 film keys and 1 LED as standard, and is powered by 24V. It supports USB2.0 and RS-422 communication.

LEARN MORE
