QC-SXG

● Multi-core Direct Connection

● integrated drive and control Design of commonbus for energy consumption reduction

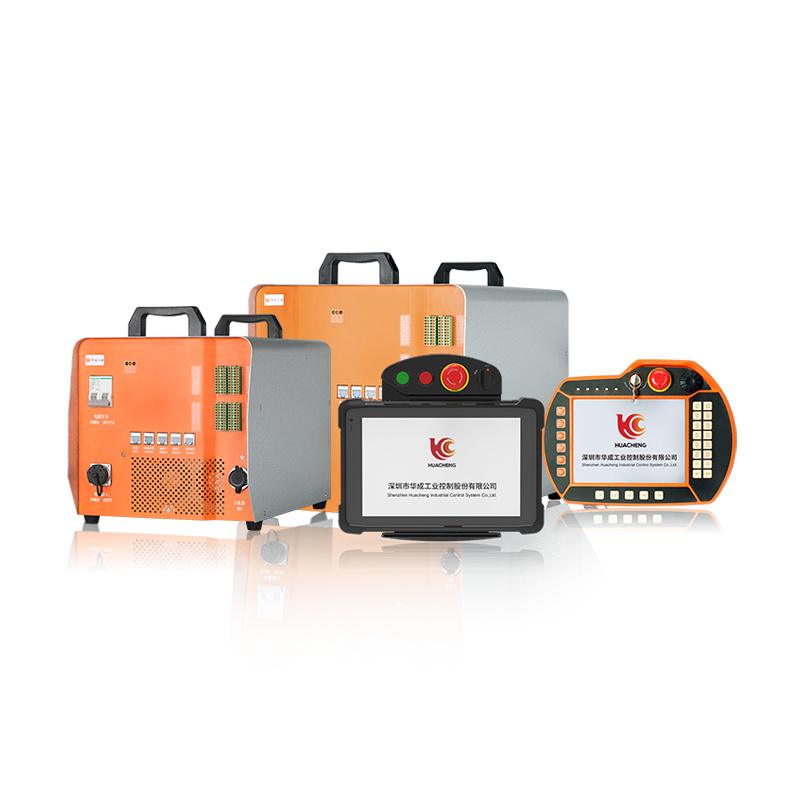

The control system of the three-five-axis linear robot forinjection molding is specifically designed for the picking andembedding operations of the gantry manipulator.It has abuilt-in mold clamping safety circuit and software logic toachieve dual safety protection.

It adopts an integrated design of control and drive,whichreduces the costs of soldering wires and maintenance.Thehuman-machine interface is intuitive and clear,and itsupports flexible teaching.It is equipped with a dedicated I/O interaction interface for injection molding machines,and iscompatible with the EU67 standard signal board card(also compatible with EU12).It is equipped with a gantry-stylemotion control algorithm,and the precision can reach 0.01mm.

Enquiry

Parameter

Download

Parameter

Type	Parameter
Input voltag	AC200V~240V,50Hz/60Hz
Motor power	100-750W
Number of controllable axes	3/5Axes
Levels of protection	Hand controller IP65/Drive and control unit IP20
Operating temperature and humidity	Temperature:0~40℃(without freezing),Humidity:≤90%RH
RS485	It supports multiple communication protocols and enables remote monitoring.
IO	32-channel standard input and output
Size	S3G: 291197mm / S5G: 300227mm
Weight	S3G: 6.5kg / S5G: 7.5kg
Heat dissipation method	Built-in Fan
Power source	Standard switching power source

*All of the above data are obtained in a standard test environment and actual performance may vary.
